Windows PVC
bluEvolution 82 Classic- 6 chambers
- construction depth of 82 mm
- 3 seals
- glazing of 24 mm to 48 mm
- perfect thermal and acoustic insulation
- weatherproof and resistant to dirt
- powerful reinforcements
- Uf =1,0 W/m2K
- Ug =0,5 W/m2K (with warm edge, glazing 48 mm)
- Uw =0,76 W/m2K (for a reference window 1230 mm x 1480 mm)
bluEvolution 82 Art Line- 6 chambers
- construction depth of 82 mm
- 3 seals
- glazing of 24 mm to 48 mm
- perfect thermal and acoustic insulation
- weatherproof and resistant to dirt
- large reinforcements
- Uf =1,0 W/m2K
- Ug =0,5 W/m2K (with warm edge, glazing of 48 mm)
- Uw =0,76 W/m2K (for a reference window 1230 mm x 1480 mm)

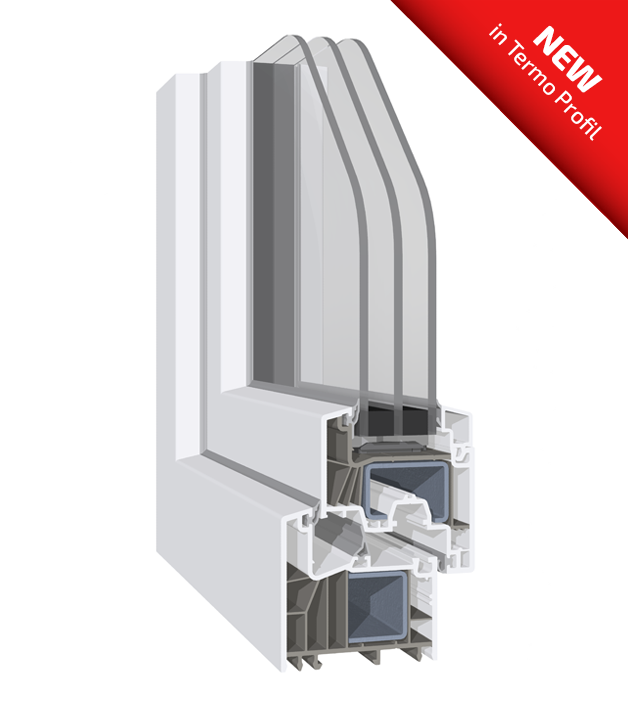

proEvolution 72 MD- 5 chambers
- construction depth of 72 mm
- 3 seals
- glazing units of 24 mm to 44 mm
- glazing beads: rectangular or rounded
- narrow combination of frame and sash: 113 mm
- use of EcoTec Plus profiles, which can, thanks to their optimized weight, reduce material consumption of structures while maintaining or improving their mechanical robustness and stability
- a core made from 100% recycled and waste materials, developing a profile that can make the construction sector more environmentally friendly and sustainable
- Uf = 1.2 W/m2K
- Ug = 0.5 W/m2K (with warm edge spacer bar, glazing unit of 44 mm)
- Uw = 0.81 W/m2K (for a reference window 1230 mm x 1480 mm)
Termo Evolution 80- 6 chambers
- construction depth of 80 mm
- 3 gaskets
- glazing of 24 mm, 28 mm and 48 mm
- low frame-and-sash combination (113 mm)
- extra gasket in the rebate
- 4 core colours: white, brown, caramel, anthracite grey
- 40 available finish colours
- also available with renovation frame of 60 mm
Technical data:
- Uf =1,0 W/m2K
- Ug =0,5 W/m2K
- Uw =0,72 W/m2K (for a reference window 1230 mm x 1480 mm)
Termo Elegant 76 Premium- 6 chambers
- frame construction depth of 76 mm
- sash construction depth of 80 mm
- 3 gaskets
- glazing units of 24 mm to 52 mm
- glazing bar cut at a right angle
- Forthex thermal reinforcement, improving thermal parameters
- top thermal and acoustic insulation
- small 9 mm stopper, with a slender, sharp shape
- modern window handles Tallin as standard
- Uf =0.96 W/m2K
- Ug =0.5 W/m2K (with warm edge, glazing 48 mm)
- Uw =0.73 W/m2K (for a reference window 1230 mm x 1480 mm)
Termo Elegant 76- 6 chambers
- frame construction depth of 76 mm
- sash construction depth of 80 mm
- 3 gaskets
- glazing units of 24 mm to 52 mm
- glazing bar cut at a right angle
- top thermal and acoustic insulation
- small 9 mm stopper, with a slender, sharp shape
- modern window handles Tallin as standard
- Uf = 1.0 W/m2K
- Ug = 0.5 W/m2K (with warm edge, glazing 48 mm)
- Uw = 0.74 W/m2K (for a reference window 1230 mm x 1480 mm)
bluEvolution 82 Renovation- 6 chambers
- construction depth of 82 mm
- 3 seals
- glazing of 24 mm to 48 mm
- perfect thermal and acoustic insulation
- weatherproof and resistant to dirt
- powerful reinforcements
- available fins: 35 or 60 mm
- Uf =1,0 W/m2K
- Ug =0,5 W/m2K (with warm edge, glazing 48 mm)
- Uw =0,76 W/m2K (for a reference window 1230 mm x 1480 mm)
proEvolution 72 MD Renovation- 5 chambers
- construction depth of 72 mm
- 3 seals
- glazing units of 24 mm to 44 mm
- glazing beads: rectangular or rounded
- narrow combination of frame and sash: 113 mm
- use of EcoTec Plus profiles, which can, thanks to their optimized weight, reduce material consumption of structures while maintaining or improving their mechanical robustness and stability
- a core made from 100% recycled and waste materials, developing a profile that can make the construction sector more environmentally friendly and sustainable
- Ug = 1,1 W/m2K (with warm edge spacer bar, glazing unit of 24 mm)
- Uw = 1,3 W/m2K (for a reference window 1230 mm x 1480 mm)
Termo Evolution 80 Renovation- 5 chambers
- construction depth of 80 mm
- 3 gaskets
- glazing of 24 to 48 mm
- low frame-and-sash combination (113 mm)
- extra gasket in the rebate
- 4 core colours: white, brown, caramel, anthracite grey
- 40 available finish colours
- also available with renovation frame of 60 mm
Technical data:
- Uf = 1.5 W/m2K
- Ug = 1.0 W/m2K
- Uw = 1.3 W/m2K (for a reference window 1230 mm x 1480 mm)
Termo Elegant 76 Renovation- 6 chambers
- frame construction depth of 76 mm
- sash construction depth of 80 mm
- 3 gaskets
- glazing units of 24 mm to 52 mm
- glazing bar cut at a right angle
- top thermal and acoustic insulation
- small 9 mm stopper, with a slender, sharp shape
- modern window handles Tallin as standard
- Uf = 1.4 W/m2K
- Ug = 1.0 W/m2K (with warm edge, glazing 24 mm)
- Uw = 1.3 W/m2K (for a reference window 1230 mm x 1480 mm)
Aluskins- 6 chambers
- construction depth of 94 mm
- 3 seals
- glazing of 24 mm to 48 mm
- passive windows with 2 mm thick steel reinforcements
- perfect thermal and acoustic insulation
- weatherproof
- strong and solid aluminium, characterized by its easy maintenance
- more tight and stable constructions
- extremely beautiful and practical
- available in all RAL colours
